Duravit Paiova 5 Corner Bath With Panel And Support Frame

If you seek a modern bath with striking looks, a large soak area and value for the cost, look no further than the Duravit Paiova range of unique models. Featured here is a five corner bath that is breathtaking in its visual appeal. A classic white colour gives it a contemporary look that will match any similar or contrasting decor. Keeping in mind comfort and luxury, it has 2 different backrest slopes and a whirlpool system. This bath is available in the right or left choice and a Jet, Combi E or Combi L system. The tub is made from quality 5mm acrylic and comes with a five-year warranty against manufacturing defects.

• It comes in a white alpin finish.
• 5 Corner Bath.
• Refer to the technical image for detailed technical dimensions.
• Download the Installation Instruction PDF File from the Additional Info Section.

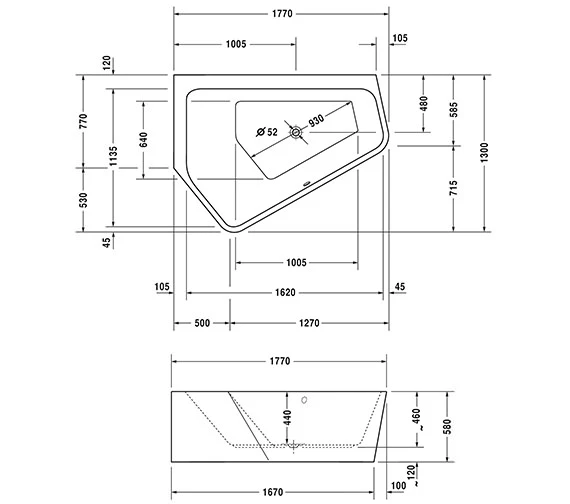

• Details Of 1770 x 1300mm Bath :.
• Dimension: 1770 x 1300 x 440mm [Length x Width x Depth].
• Height with the panel: 580mm.
• The capacity of the bath: is 205 Litres.

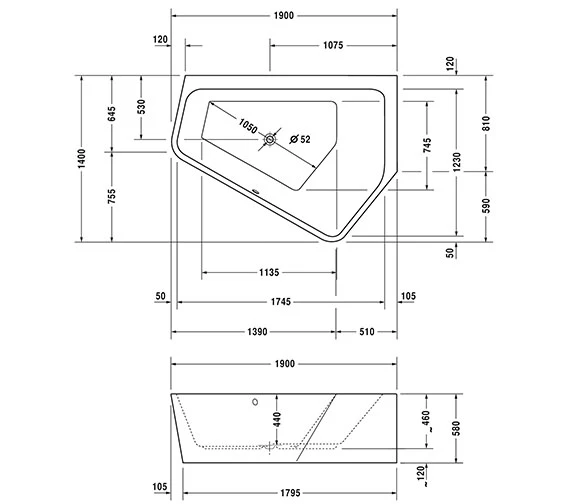

• Details Of 1900 x 1400mm Bath :.
• Dimensions: 1900 x 1400 x 440mm [Length x Width x Depth].
• Height with Panel: 580mm.
• Water capacity: 267 litres.
• Features Of Air System :.
• 12 flat white floor jets air.
• Piezo switched floor jets.
• Includes waste and overflow.
• Supplied with support frame.

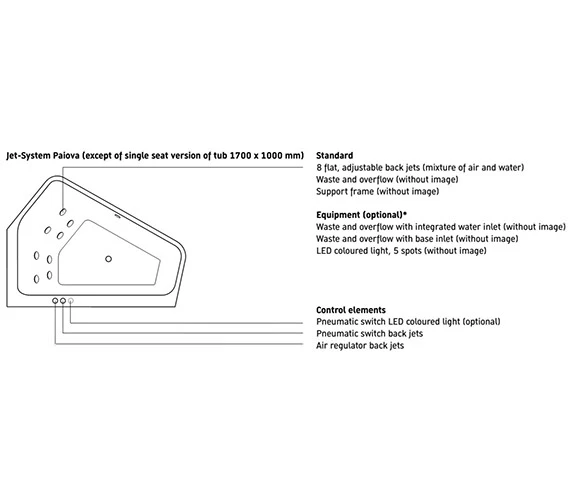

• Features Of Jet System :.
• Eight flat adjustable back jets for the mixture of air and water.
• Pneumatic switch back jets.
• Air regulator back jets.
• Includes waste and overflow.
• Supplied with support frame.
• Full system drainage.
• A system with protection against dry run.

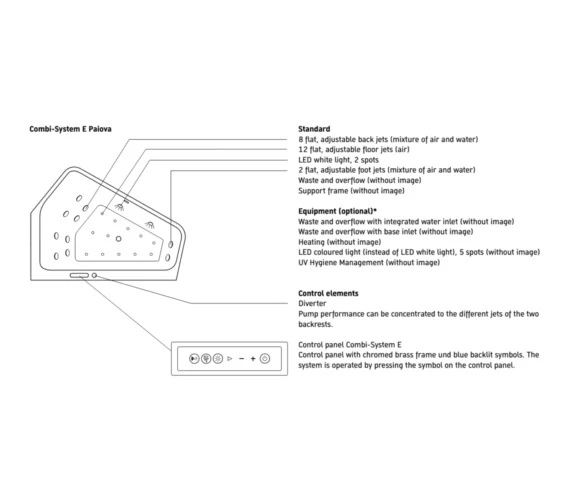

• Features Of Combi System E :.
• 8 Flat Adjustable Back jets for the mixture of air and water.
• 12 Flat adjustable Floor Jets for air.

• LED White light – 2 Spot.
• 2 Flat adjustable foot Jets for the mixture of air and water.
• Includes waste and overflow.
• Supplied with support frame.
• Diverter.
• Pump performance can be concentrated on the different jets of the two backrests.
• Full system drainage.
• A system with protection against dry run.
• Control panel with chromed brass frame and blue backlit symbols.
• The Combi system E is operated by pressing the symbol on the control panel.

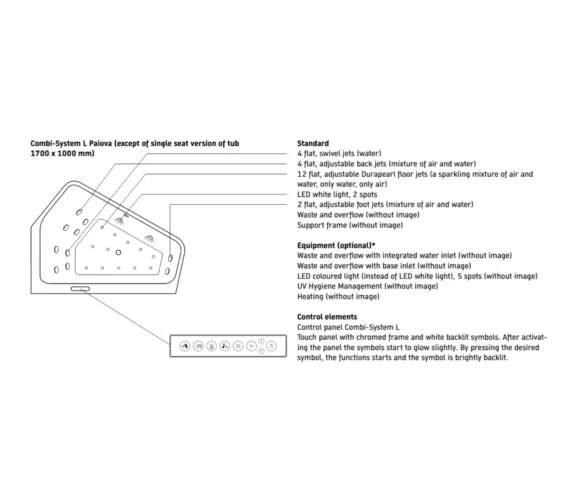

• Features Of Combi System L :.
• 4 Flat Swivel jets for water.
• 4 Flat Adjustable Back jets for the mixture of air and water.
• 12 Flat adjustable Durapearl Floor Jet for air – a sparkling mixture of air and water, only water, only air.
• LED White light – 2 Spot.
• 2 Flat adjustable foot Jets for the mixture of air and water.
• Includes waste and overflow.
• Supplied with support frame.
• Full system drainage.
• A system with protection against dry run.
• Control Panel with white backlit symbol.
• The Combi system L is operated by pressing the desired symbol on the Chromed frame touch panel.
• Optional Accessories :.
• White Headrest.
• Bathtub anchor.
• Rubber profile.
• Surcharge for Quadroval waste and overflow with a water inlet.
• Surcharge for Quadroval waste and overflow with base inlet.

Note: Quadroval, Waste and overflow with water inlet, pipe interrupt or faucet with safety against backflow according to DIN EN 1717 necessary, connection hose # 790166 is included in the delivery. Quadroval, Waste and overflow with base inlet, pipe interrupt is mandatory, connection hose # 790166 is recommended.
